Nylon Cable Ties · Specialty Ties

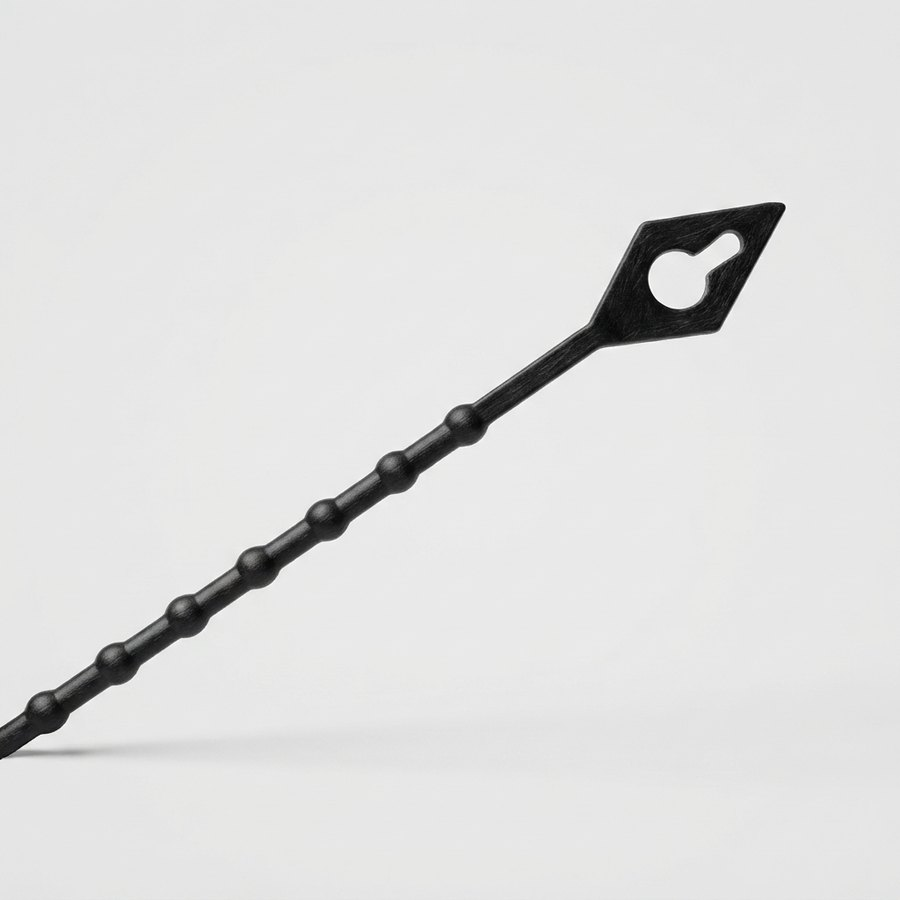

Beaded Lock Ties
- Material
- PA66
- Lengths
- 100 – 200 mm
- Max. bundle Ø
- 25 – 51.9 mm
- References
- 3
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- Compliance
- RoHS Directive (EU) 2016/863 · REACH
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Length (mm) | Length (in) | Max. bundle Ø (mm) | Max. bundle Ø (in) |
|---|---|---|---|---|
| AL-BD-100-4 | 100 | 4.0 | 25 | 0.98 |
| AL-BD-150-6 | 150 | 6.0 | 36 | 1.41 |
| AL-BD-200-8 | 200 | 8.0 | 51.9 | 2.04 |
UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

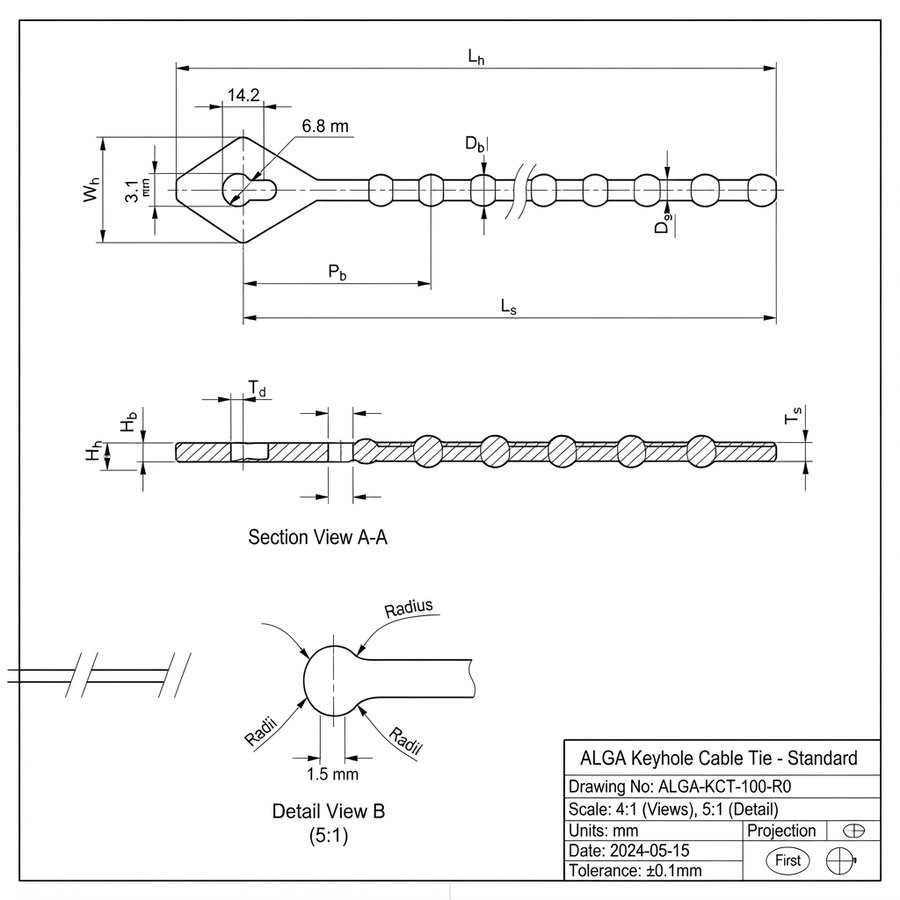

Technical drawing
