Nylon Cable Ties · Standard Cable Ties

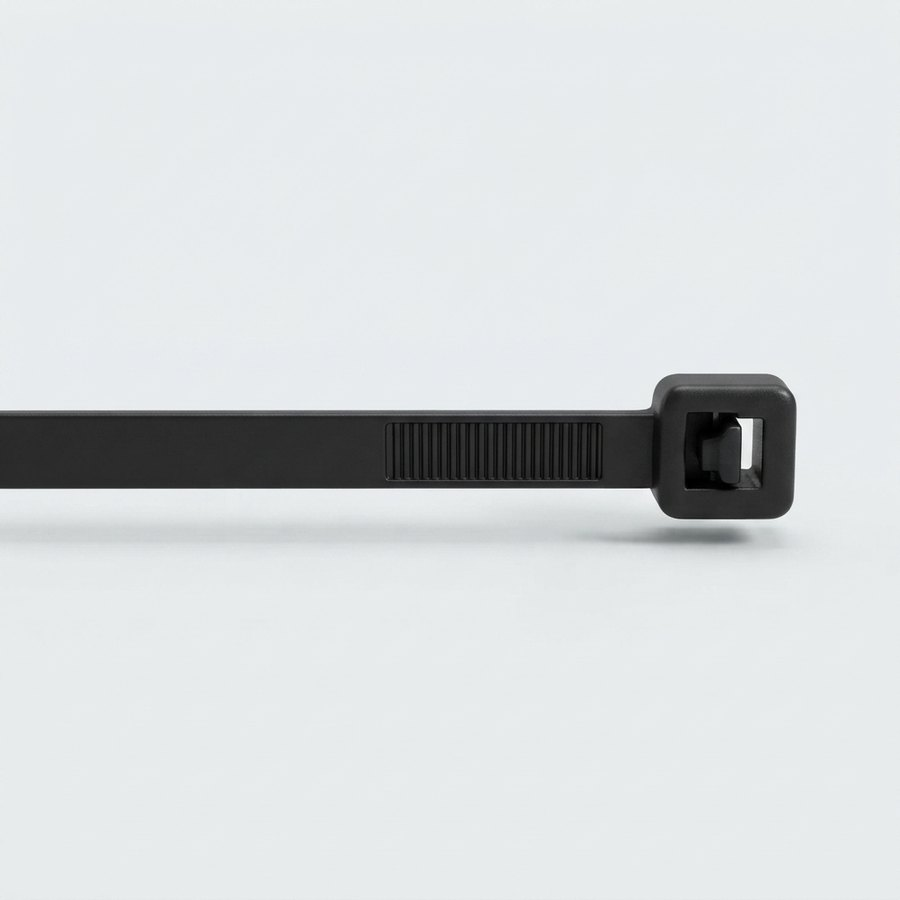

Cable Ties (M)
- Tensile strength
- 80 N · 18 lb
- Width
- 2.5 mm
- Lengths
- 80 – 380 mm
- References
- 9
- Material: Polyamide 6.6 (PA66)
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C
Description
- Material
- Polyamide 6.6 (PA66)
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C
- Working temperature
- −40 °C to +85 °C
- Max. short-time temperature
- +110 °C
- UL type
- 21
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-M-080-3 | 2.5 × 80 | 3.2 | 3 – 14 | 0.12 – 0.55 |
| AL-M-100-4 | 2.5 × 100 | 4.0 | 3 – 20.5 | 0.12 – 0.81 |
| AL-M-120-5 | 2.5 × 120 | 4.7 | 3 – 27 | 0.12 – 1.06 |
| AL-M-130-5 | 2.5 × 130 | 5.0 | 3 – 30 | 0.12 – 1.18 |
| AL-M-150-6 | 2.5 × 150 | 6.0 | 3 – 36.5 | 0.12 – 1.44 |
| AL-M-160-6 | 2.5 × 160 | 6.3 | 3 – 39.8 | 0.12 – 1.57 |
| AL-M-200-8 | 2.5 × 200 | 8.0 | 3 – 52.5 | 0.12 – 2.07 |
| AL-M-260-10 | 2.5 × 260 | 10.2 | 3 – 73 | 0.12 – 2.87 |
| AL-M-380-15 | 2.5 × 380 | 15.0 | 3 – 110 | 0.12 – 4.33 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

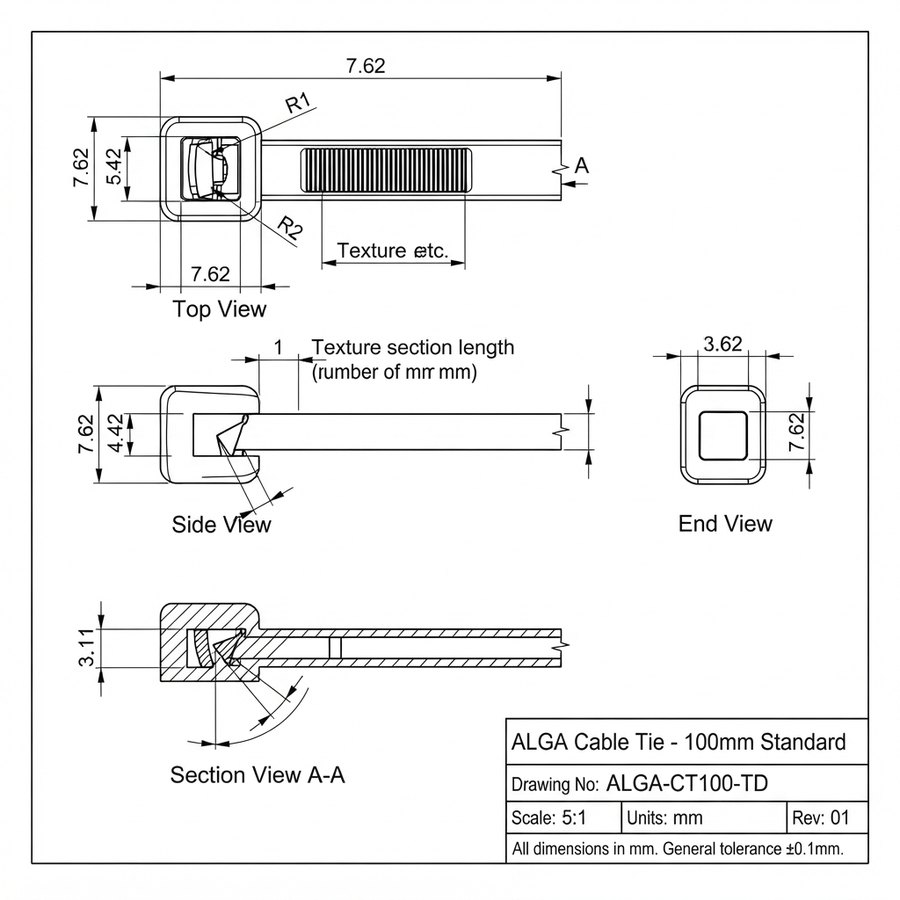

Technical drawing
