Nylon Cable Ties · Specialty Ties

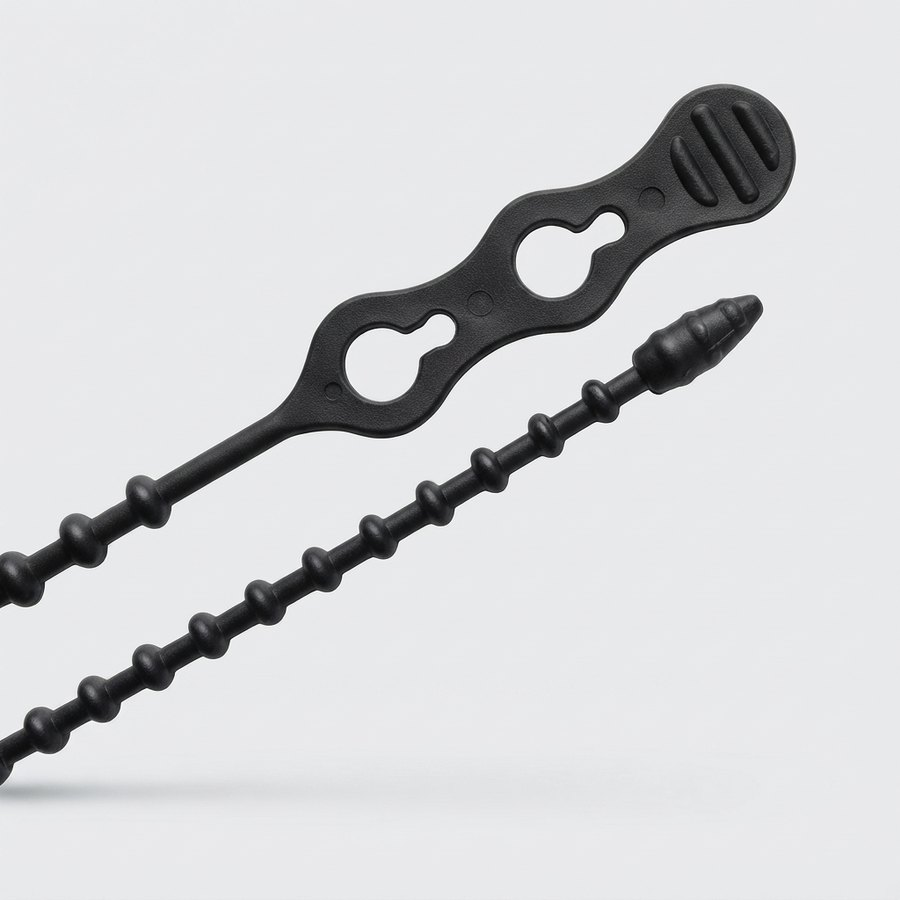

D-Loop Bead Ties
- Tensile strength
- 230 – 540 N
- Width
- 4.5 – 6.5 mm
- Lengths
- 210 – 610 mm
- References
- 4
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- Compliance
- RoHS Directive (EU) 2016/863 · REACH
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Tensile strength | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|---|
| AL-DBL-210-8 | 4.5 × 210 | 8.0 | 230 N (50 lb) | 8 – 53.5 | 0.31 – 2.11 |
| AL-DBL-310-12 | 4.5 × 310 | 12.0 | 230 N (50 lb) | 8 – 83.8 | 0.31 – 3.30 |
| AL-DBL-460-18 | 6.5 × 460 | 18.0 | 540 N (120 lb) | 8 – 129.5 | 0.31 – 5.10 |
| AL-DBL-610-24 | 6.5 × 610 | 24.0 | 540 N (120 lb) | 8 – 175.2 | 0.31 – 6.90 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

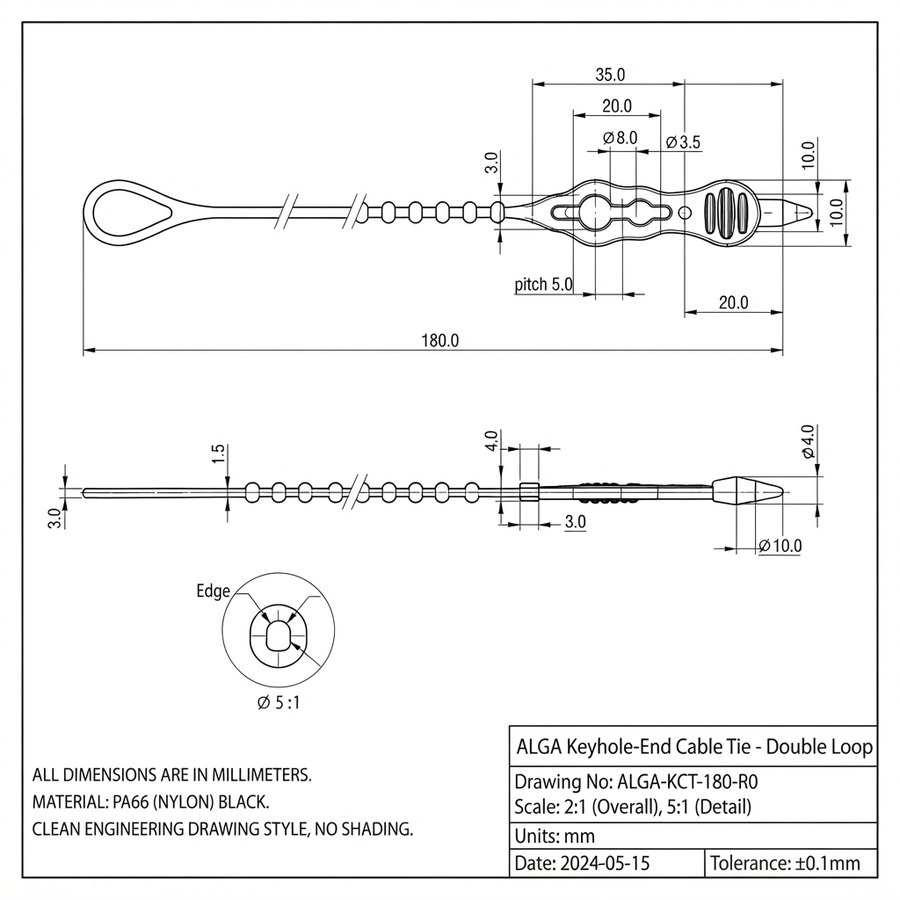

Technical drawing
