Nylon Cable Ties · Mounting & Fixing Ties

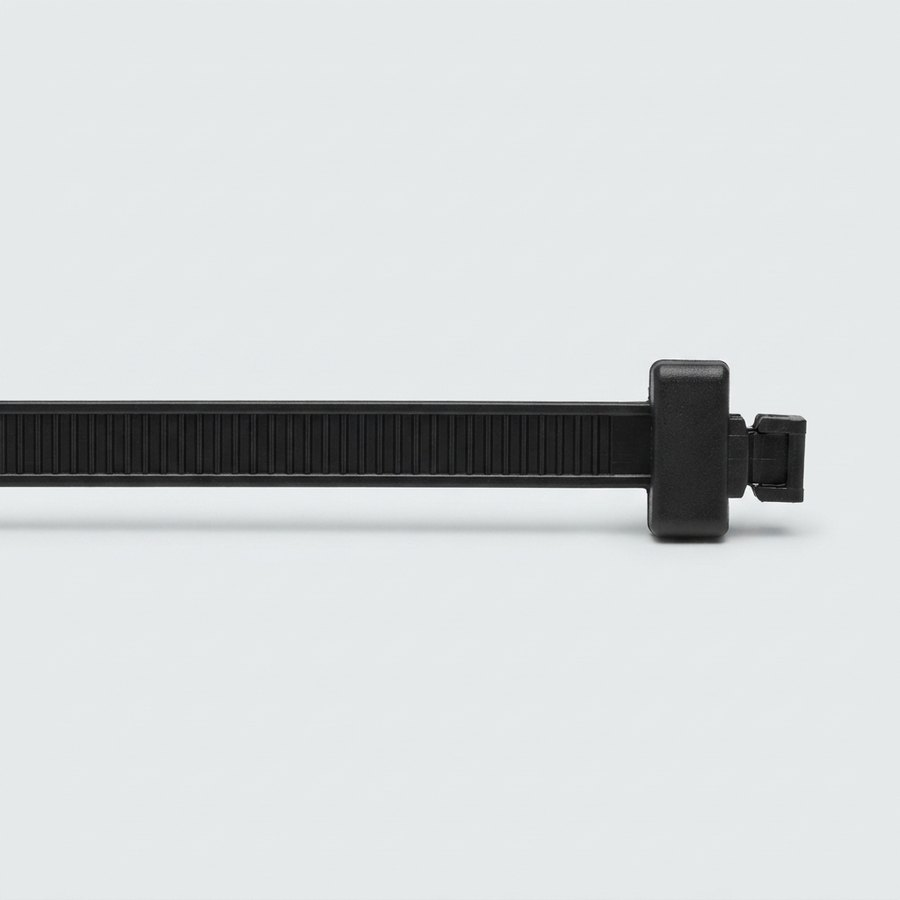

Button Head Ties
- Tensile strength
- 540 N · 120 lb
- Width
- 7.6 mm
- Lengths
- 200 – 370 mm
- References
- 4
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-BTR-S-200-8 | 7.6 × 200 | 8.0 | 8.5 – 50.9 | 0.33 – 2.00 |
| AL-BTR-S-300-12 | 7.6 × 300 | 11.8 | 8.5 – 82.8 | 0.33 – 3.26 |
| AL-BTR-S-370-14 | 7.6 × 370 | 14.0 | 8.5 – 103.5 | 0.33 – 4.07 |
| AL-BTS-S-370-14 | 7.6 × 370 | 14.0 | 8.5 – 103.5 | 0.33 – 4.07 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

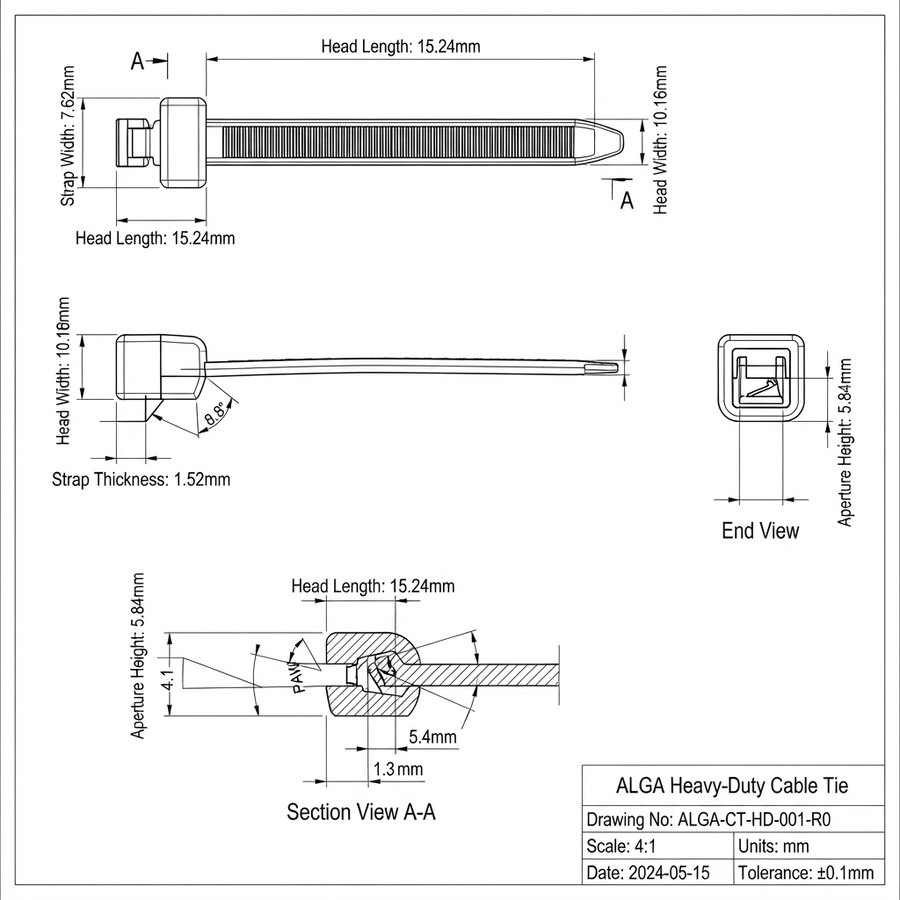

Technical drawing
