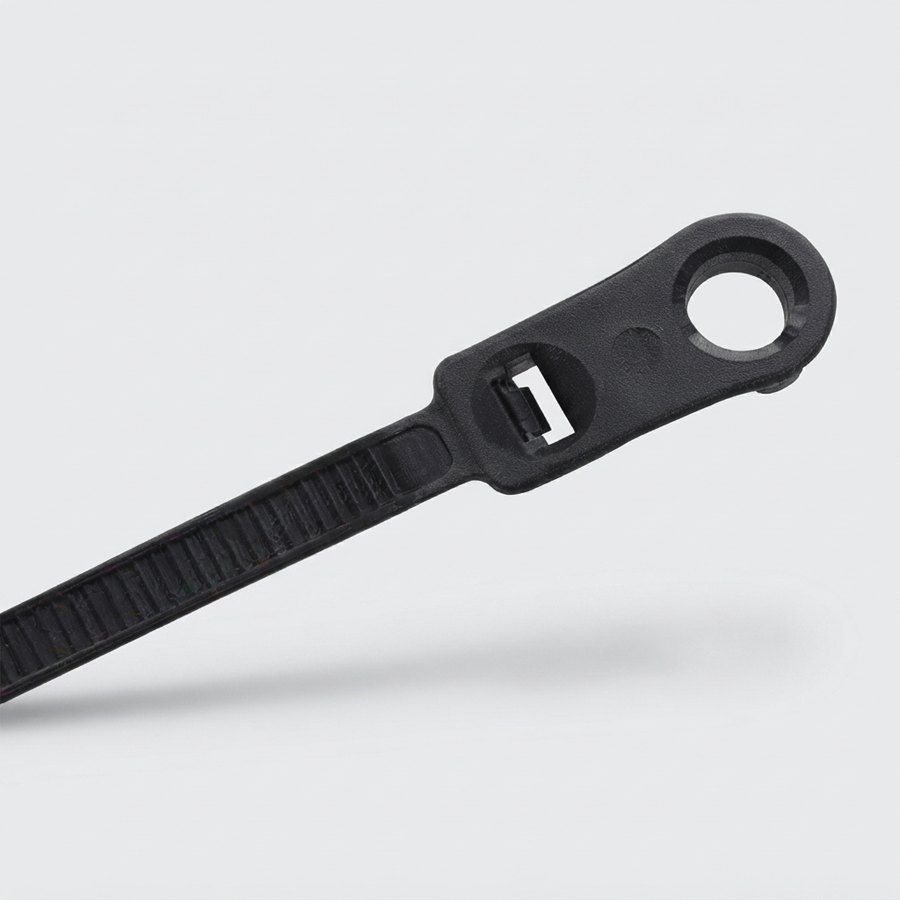

Mounted Head Ties

Description

Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
Material brands: DuPont, Ascend
Flammability: UL 94 V-2
Humidity absorption: 2.7 – 2.8 % at 23 °C / 50 % RH
Installation temperature: −10 °C to +85 °C (heat-stabilised: +115 °C)
Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Max. short-time temperature: +110 °C (heat-stabilised: +130 °C)
UL type: 21
UV resistance: Carbon black additive improves UV resistance (black ties only)
Chemical resistance: Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.

Datasheet

Reference	Size W × L (mm)	Length (in)	Tensile strength	Bundle Ø (mm)	Bundle Ø (in)	Fastener
AL-MT-M-110-4	2.5 × 110	4.3	80 N (18 lb)	3 – 19	0.12 – 0.75	M2.5 [#4]
AL-MT--150-6	3.6 × 150	6.0	180 N (40 lb)	3.5 – 35.5	0.14 – 1.40	M4 [#8]
AL-MT-S-160-6	4.8 × 160	6.3	230 N (50 lb)	3.5 – 36.8	0.14 – 1.45	M5 [#10]
AL-MT-S-200-8	4.8 × 200	8.0	230 N (50 lb)	3.5 – 49.8	0.14 – 1.96	M5 [#10]
AL-MT-S-300-12	4.8 × 300	12.0	230 N (50 lb)	3.5 – 82.8	0.14 – 3.26	M5 [#10]
AL-MT-S-370-14	4.8 × 370	14.5	230 N (50 lb)	3.5 – 103.8	0.14 – 4.09	M5 [#10]
AL-MT-HD-300-12	7.6 × 300	12.0	540 N (120 lb)	8.5 – 78.7	0.33 – 3.10	M6 [1/4″]
AL-MT-HD-400-15	7.6 × 400	15.7	540 N (120 lb)	8.5 – 109.2	0.33 – 4.30	M6 [1/4″]

Bundle Ø = min – max bundle diameter. Fastener = metric screw size [US screw size]. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.
