Nylon Cable Ties · Mounting & Fixing Ties

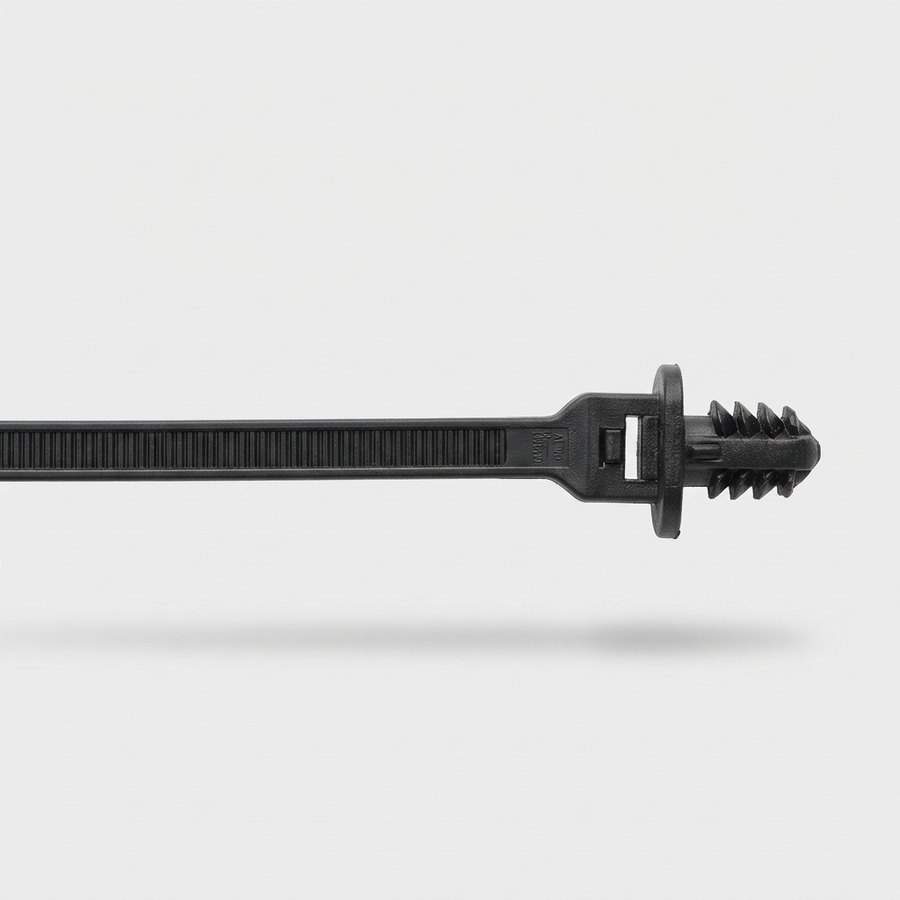

Fir-Tree Cable Ties
- Tensile strength
- 230 N · 50 lb
- Width
- 4.8 mm
- Min. hole size
- 6.35 mm 0.25 in
- References
- 2
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) | Construction | Min. hole mm (in) | Panel thickness mm (in) |
|---|---|---|---|---|---|---|---|
| AL-FT-S-210-8 | 4.8 × 210 | 8.0 | 3.5 – 49.5 | 0.14 – 1.95 | One-piece | 6.35 (0.25) | 1.25 – 6.35 (0.05 – 0.25) |
| AL-FT-S-200-8 | 4.8 × 200 | 8.0 | 3.5 – 49.5 | 0.14 – 1.95 | Two-piece | 6.35 (0.25) | 1.25 – 7.50 (0.05 – 0.30) |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

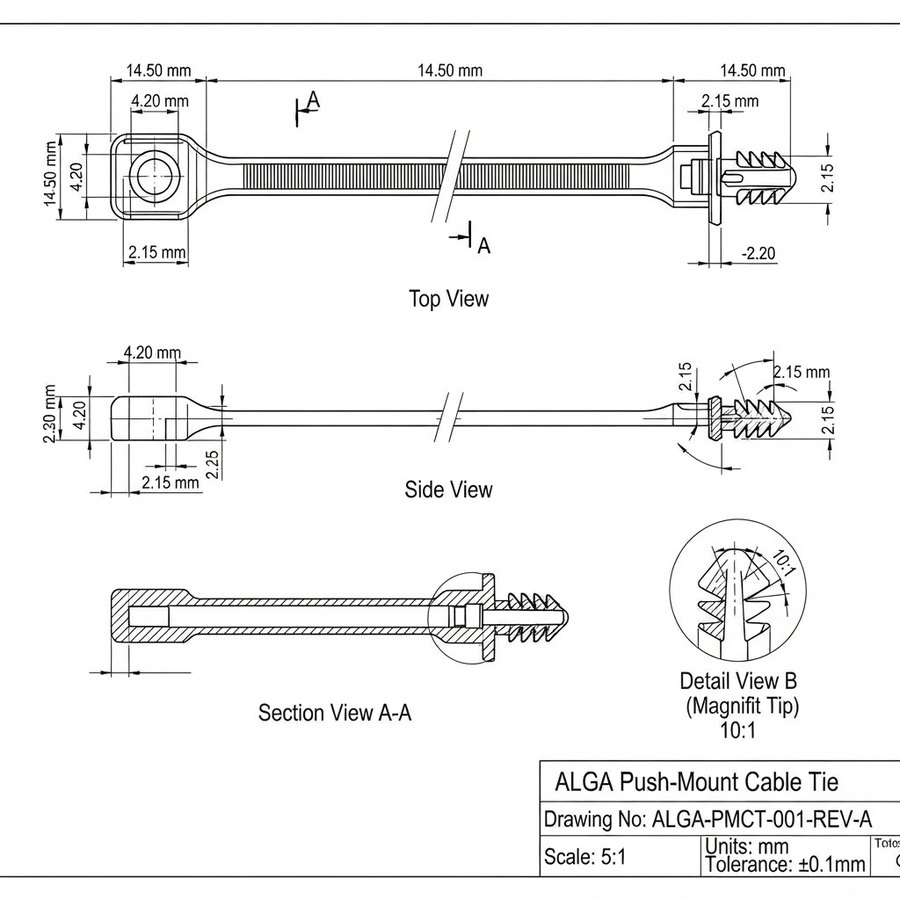

Technical drawing
