Nylon Cable Ties · Mounting & Fixing Ties

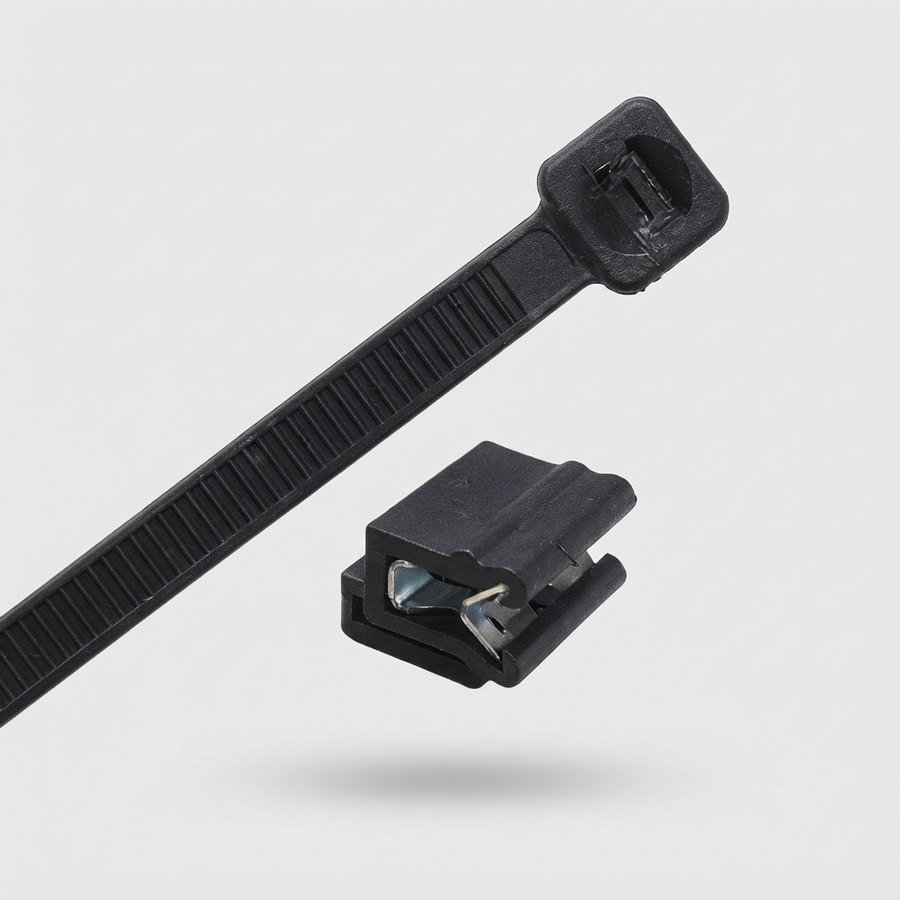

Edge Clip Ties
- Tensile strength
- 230 N · 50 lb
- Width
- 4.8 mm
- Edge thickness
- 1 – 3 mm
- References
- 3
- Materials: PA66 UV-stabilised (PA66UV) · PA66 heat-stabilised (PA66HS) · PA66 high-impact modified, heat-stabilised (PA66HIRHS)
- Working temperature: PA66UV: −40 °C to +85 °C · PA66HS: −40 °C to +115 °C
Description
- Materials
- PA66 UV-stabilised (PA66UV) · PA66 heat-stabilised (PA66HS) · PA66 high-impact modified, heat-stabilised (PA66HIRHS)
- Working temperature
- PA66UV: −40 °C to +85 °C · PA66HS: −40 °C to +115 °C
- Design
- Pre-assembled 2-piece fixing tie with EdgeClip. The cable tie head can be moved after bundling. For edges of 1 – 3 mm.
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Applications
- Ideal where holes are not acceptable or adhesives fail. Used in automotive, harness making, panel building and the electrical industry.
- Chemical resistance
- Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-EC-S-200-8 | 4.8 × 200 | 8.0 | 3.5 – 49.5 | 0.14 – 1.95 |
| AL-EC-S-280-11 | 4.8 × 280 | 11.0 | 3.5 – 74.8 | 0.14 – 2.94 |
| AL-EC-S-360-14 | 4.8 × 360 | 14.0 | 3.5 – 100 | 0.14 – 3.94 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

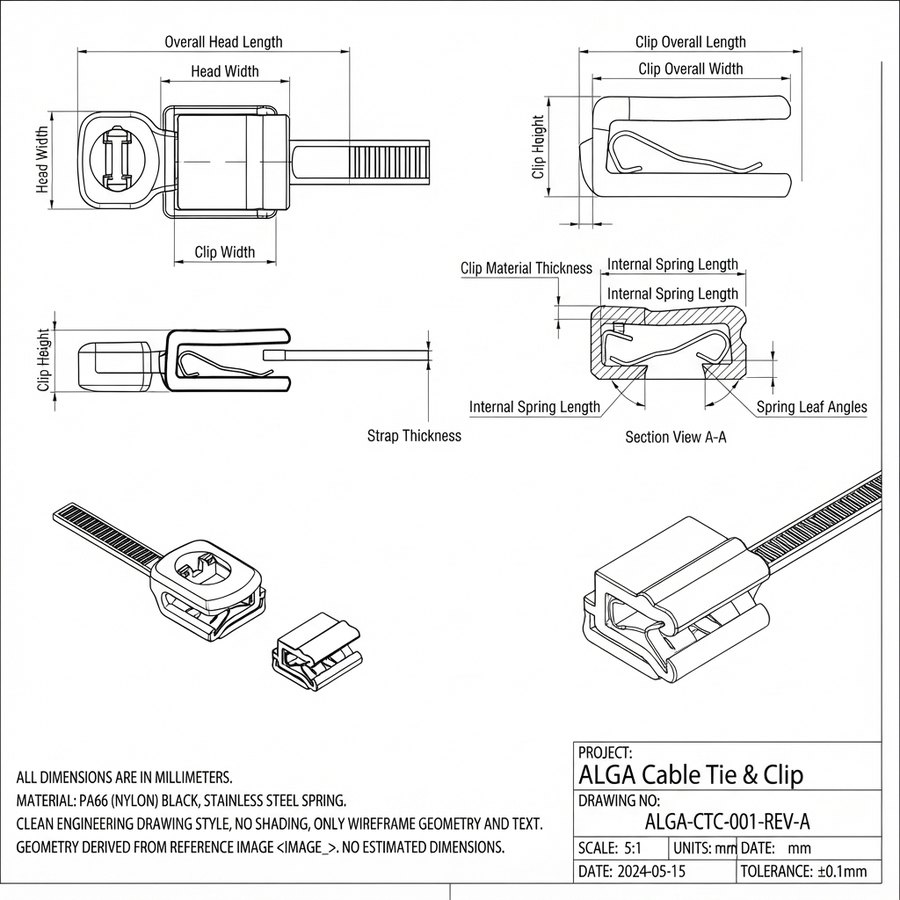

Technical drawing
