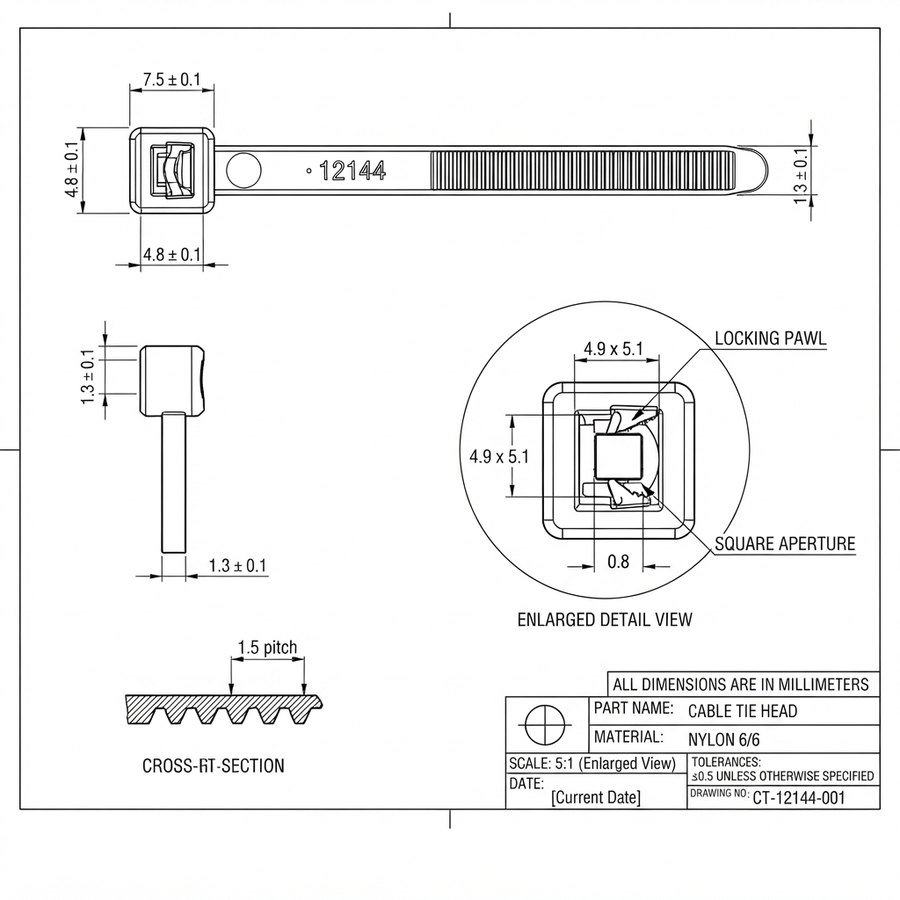

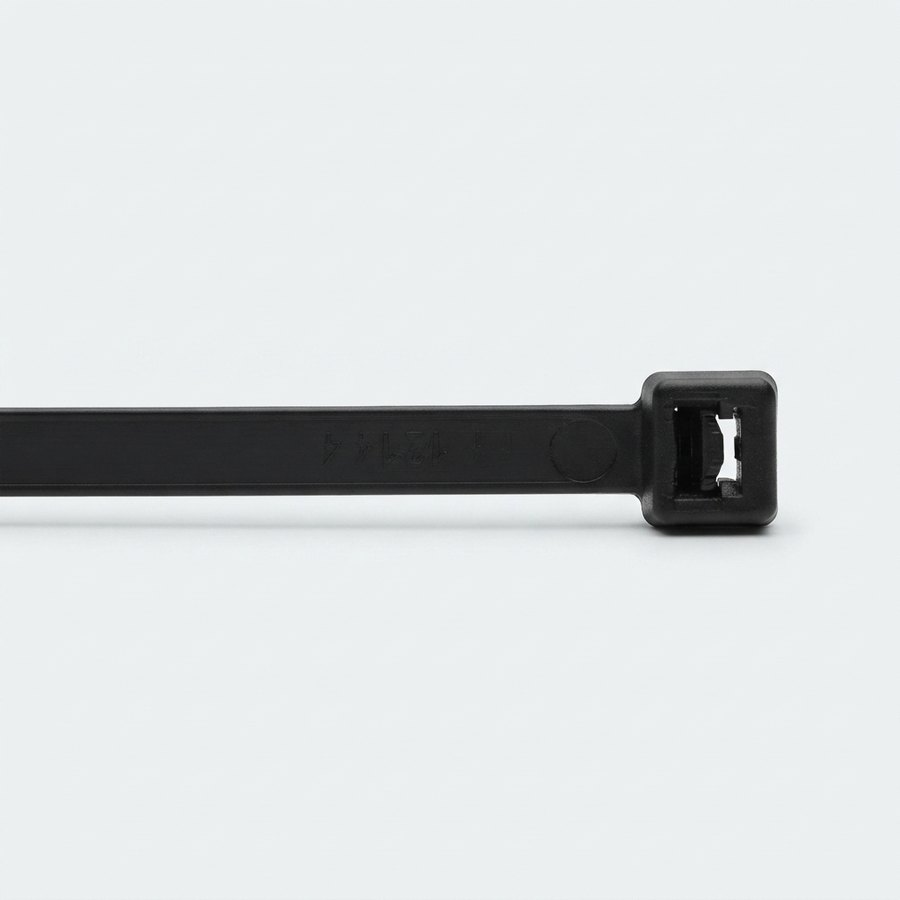

Cable Ties (EHD)

Description

Material: Polyamide 6.6 (PA66)
Material brands: DuPont, Ascend
Flammability: UL 94 V-2
Humidity absorption: 2.7 – 2.8 % at 23 °C / 50 % RH
Installation temperature: −10 °C to +85 °C
Working temperature: −40 °C to +85 °C
Max. short-time temperature: +110 °C
UL type: 21
UV resistance: Carbon black additive improves UV resistance (black ties only)
Chemical resistance: Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.

Datasheet

Reference	W × L (mm)	L (in)	Ø (mm)	Ø (in)
AL-EHD-300-12	8.8 × 300	11.8	8.5 – 83	0.33 – 3.27
AL-EHD-400-16	8.8 × 400	15.7	8.5 – 115	0.33 – 4.53
AL-EHD-450-18	8.8 × 450	18.0	8.5 – 130.5	0.33 – 5.14
AL-EHD-500-20	8.8 × 500	19.7	8.5 – 146.5	0.33 – 5.77
AL-EHD-550-21	8.8 × 550	21.6	8.5 – 163.5	0.33 – 6.44
AL-EHD-610-24	8.8 × 610	24.0	8.5 – 181.5	0.33 – 7.15
AL-EHD-710-28	8.8 × 710	28.0	8.5 – 195	0.33 – 7.68
AL-EHD-750-29	8.8 × 750	29.5	8.5 – 205	0.33 – 8.07
AL-EHD-760-30	8.8 × 760	30.0	8.5 – 229.5	0.33 – 9.04
AL-EHD-780-31	8.8 × 780	30.5	8.5 – 235.5	0.33 – 9.27
AL-EHD-810-32	8.8 × 810	32.0	8.5 – 245	0.33 – 9.65
AL-EHD-920-36	8.8 × 920	36.0	8.5 – 280	0.33 – 11.02
AL-EHD-1020-40	8.8 × 1020	40.1	8.5 – 295	0.33 – 11.61
AL-EHD-1168-46	8.8 × 1168	46.0	8.5 – 340	0.33 – 13.39
AL-EHD-1220-48	8.8 × 1220	48.0	78 – 375.5	3.07 – 14.78
AL-EHD-1530-60	8.8 × 1530	60.0	160 – 450	6.30 – 17.72

W × L = width × length · L (in) = length in inches · Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.
