Nylon Cable Ties · Heavy-Duty Ties

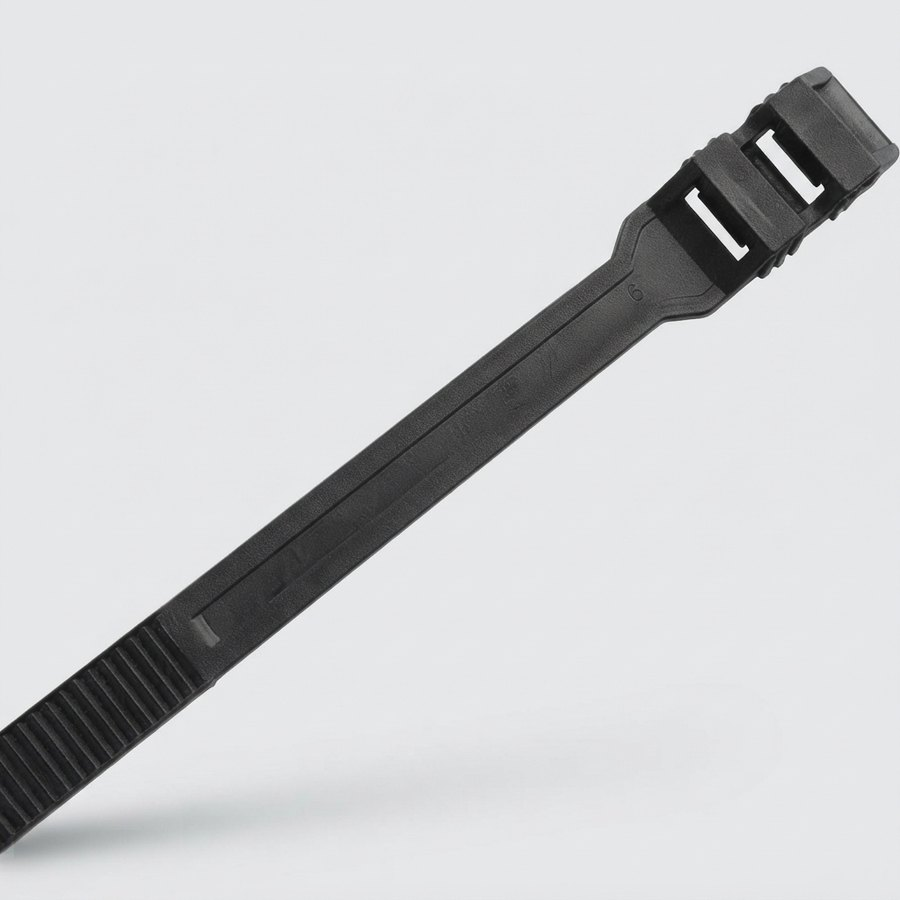

Extern Ties
- Tensile strength
- 400 – 540 N
- Width
- 9.0 mm
- Lengths
- 180 – 760 mm
- References
- 6
- Material: Polyamide 6.6 (heat-stabilised grade available) or high-impact grade PA66 — unreinforced and super-tough, with outstanding impact resistance
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (heat-stabilised grade available) or high-impact grade PA66 — unreinforced and super-tough, with outstanding impact resistance
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Tensile strength | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|---|
| AL-E-HD-180-7 | 9.0 × 180 | 7.0 | 400 N (88 lb) | 20 – 40 | 0.79 – 1.57 |
| AL-E-HD-265-10 | 9.0 × 265 | 10.4 | 540 N (120 lb) | 20 – 62 | 0.79 – 2.44 |
| AL-E-HD-300-12 | 9.0 × 300 | 11.8 | 540 N (120 lb) | 20 – 80 | 0.79 – 3.14 |
| AL-E-HD-360-14 | 9.0 × 360 | 14.0 | 540 N (120 lb) | 20 – 93 | 0.79 – 3.66 |
| AL-E-HD-510-20 | 9.0 × 510 | 20.0 | 540 N (120 lb) | 20 – 140 | 0.79 – 6.61 |
| AL-E-HD-760-30 | 9.0 × 760 | 30.0 | 540 N (120 lb) | 20 – 220 | 0.79 – 8.66 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

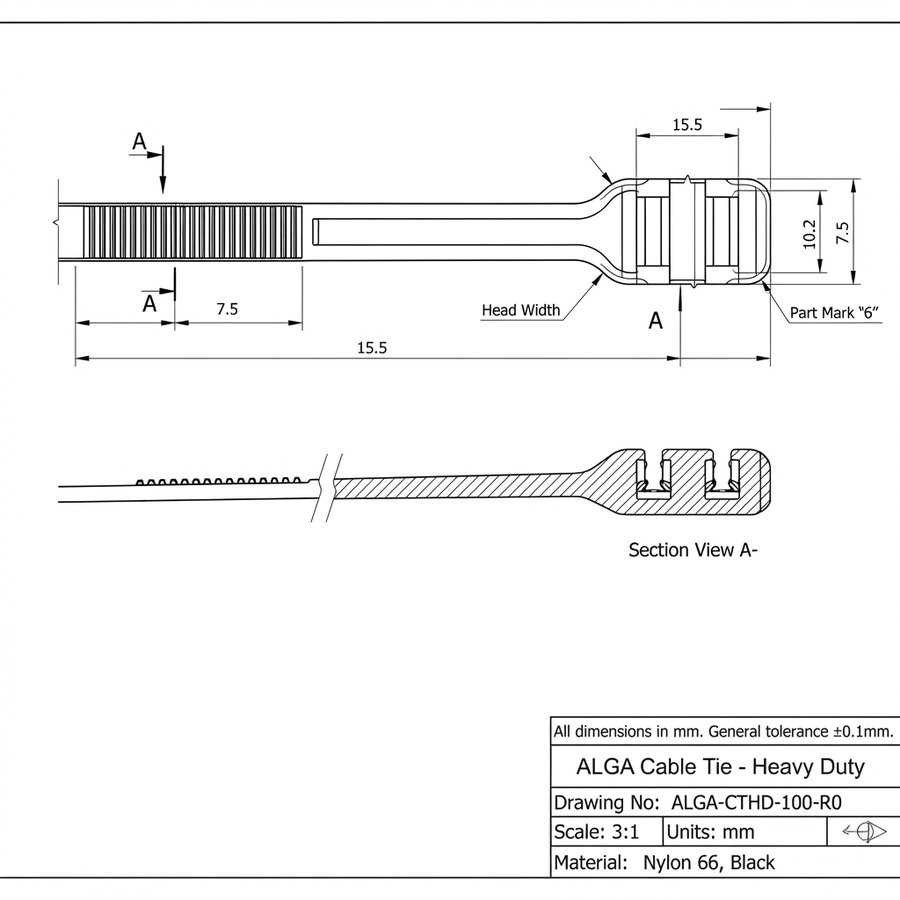

Technical drawing
