Nylon Cable Ties · Standard Cable Ties

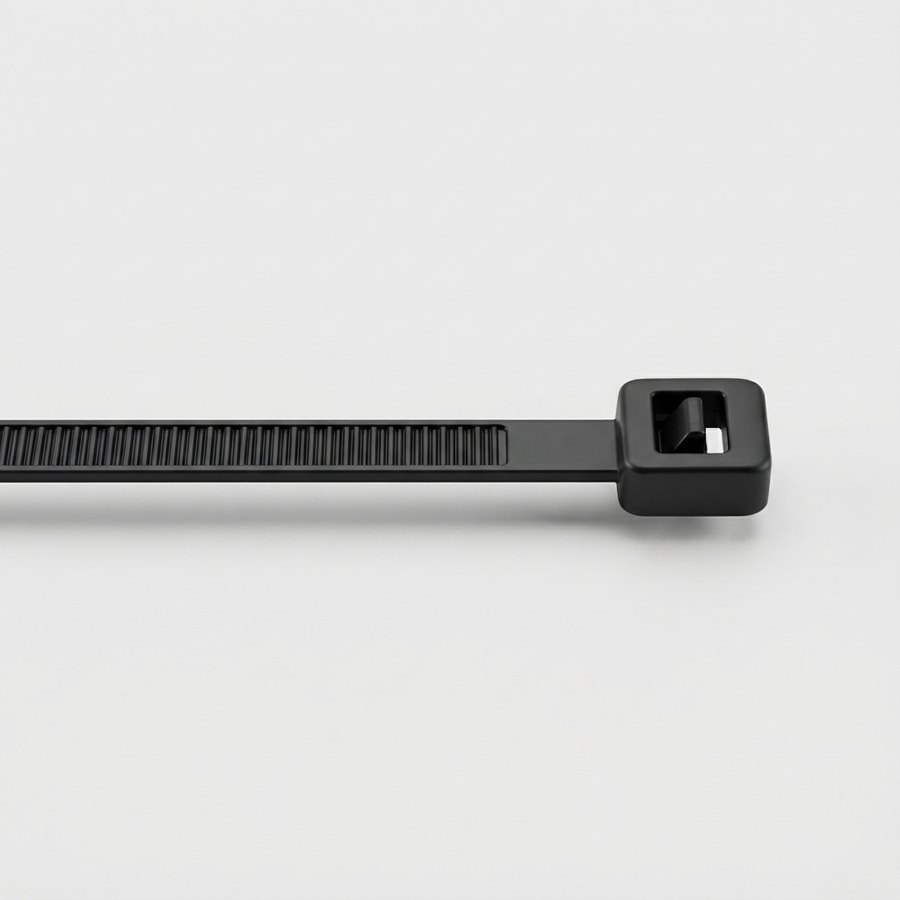

Cable Ties (I)
- Tensile strength
- 180 N · 40 lb
- Width
- 3.6 mm
- Lengths
- 140 – 370 mm
- References
- 8
- Material: Polyamide 6.6 (PA66)
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C
Description
- Material
- Polyamide 6.6 (PA66)
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C
- Working temperature
- −40 °C to +85 °C
- Max. short-time temperature
- +110 °C
- UL type
- 21
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-I-140-5 | 3.6 × 140 | 5.5 | 3.5 – 33 | 0.14 – 1.30 |
| AL-I-150-6 | 3.6 × 150 | 6.0 | 3.5 – 36 | 0.14 – 1.42 |
| AL-I-180-7 | 3.6 × 180 | 7.0 | 3.5 – 46 | 0.14 – 1.81 |
| AL-I-200-8 | 3.6 × 200 | 8.0 | 3.5 – 52.5 | 0.14 – 2.07 |
| AL-I-250-10 | 3.6 × 250 | 10.0 | 3.5 – 68 | 0.14 – 2.68 |
| AL-I-280-11 | 3.6 × 280 | 11.0 | 3.5 – 78 | 0.14 – 3.07 |
| AL-I-300-12 | 3.6 × 300 | 11.8 | 3.5 – 84 | 0.14 – 3.31 |
| ALI-370-15 | 3.6 × 370 | 14.5 | 3.5 – 106 | 0.14 – 4.17 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

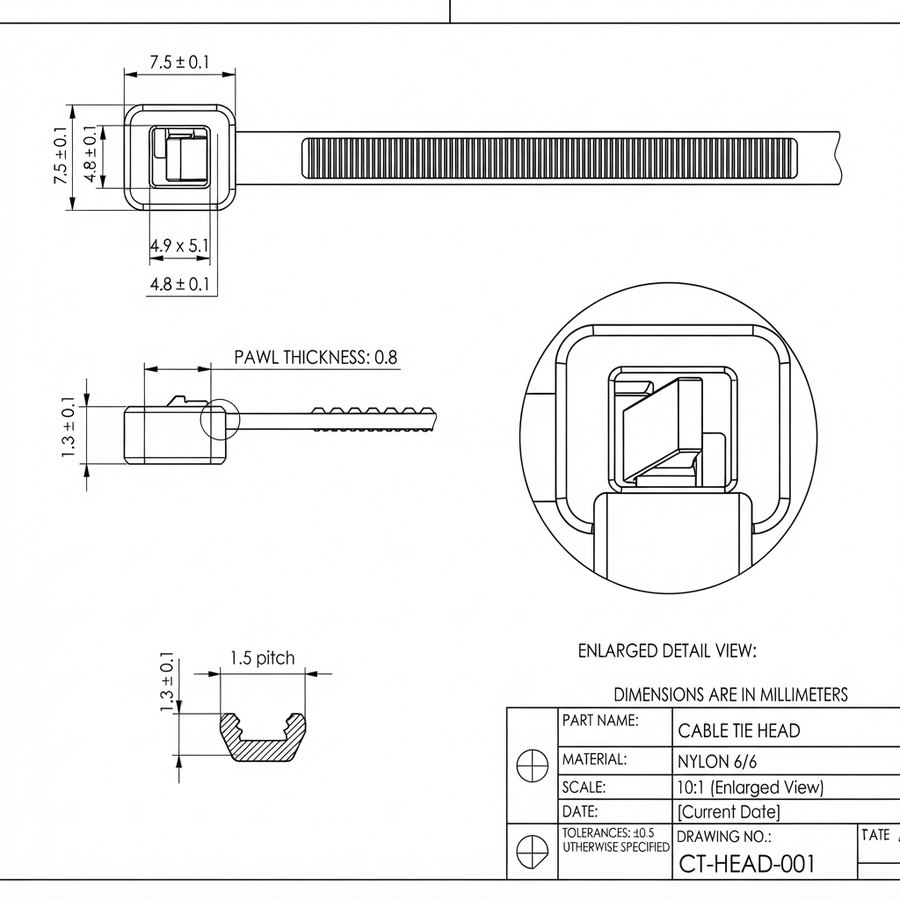

Technical drawing
