Nylon Cable Ties · Marker Ties

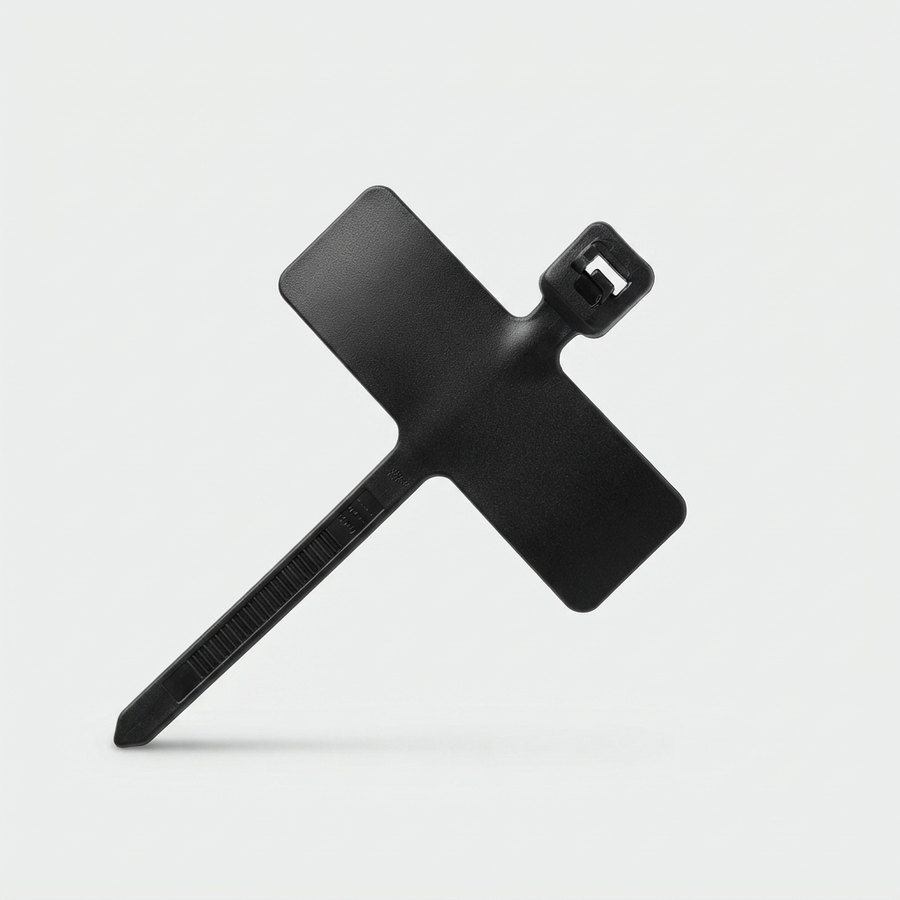

Marker Ties 1
- Tensile strength
- 80 N · 18 lb
- Width
- 2.5 mm
- Marker plate · horizontal
- 7.75 × 24.5 mm
- References
- 2
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- Approvals
- UL type 21 · UL (file E258930, UL 62275) · TÜV EN 62275:2015
- Marker plate
- Horizontal · 7.75 × 24.5 mm (0.30 × 0.95 in)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-M-M-100-4 | 2.5 × 100 | 4.0 | 3 – 22 | 0.12 – 0.86 |
| AL-M-M-200-8 | 2.5 × 200 | 8.0 | 3 – 53.9 | 0.12 – 2.12 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

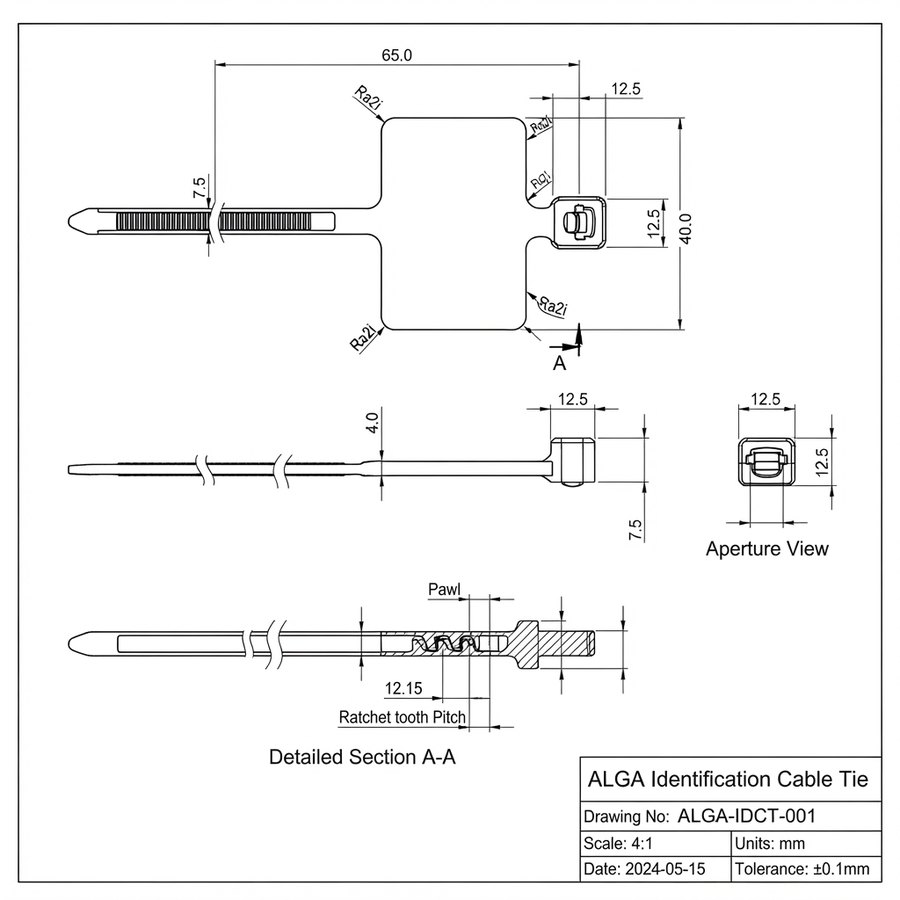

Technical drawing
