Nylon Cable Ties · Marker Ties

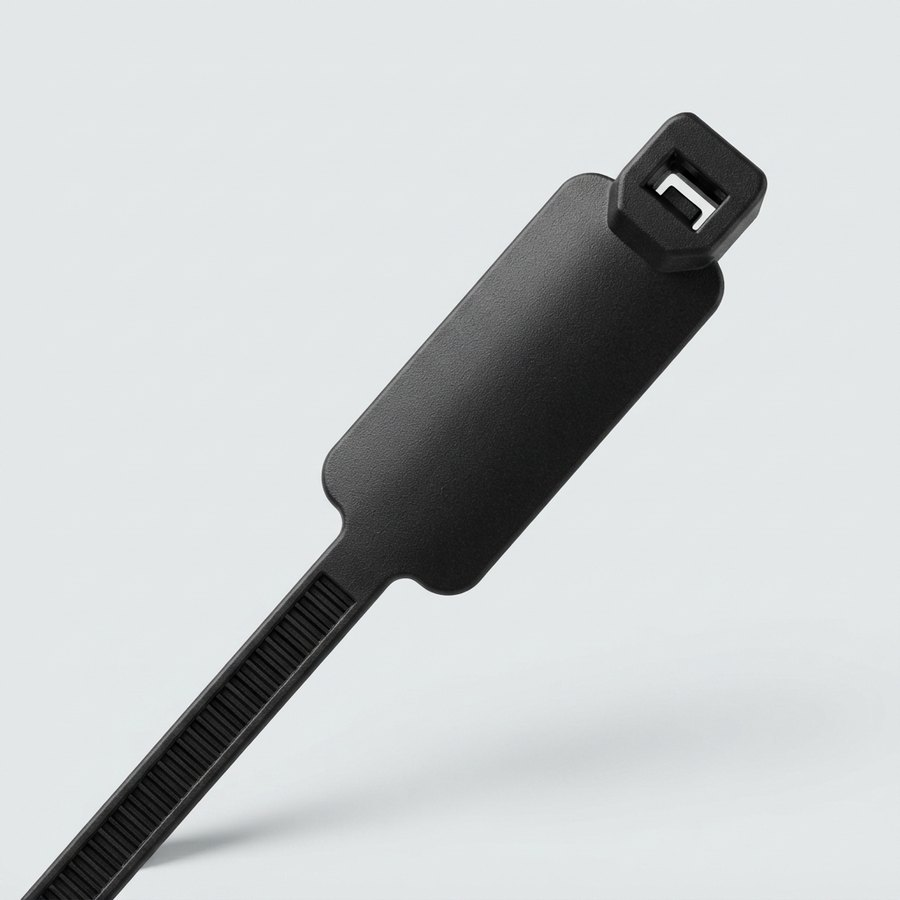

Marker Ties 2
- Tensile strength
- 230 N · 50 lb
- Width
- 4.8 mm
- Marker plate · vertical
- 12.9 × 27 mm
- References
- 3
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- Approvals
- UL type 21 · UL (file E258930, UL 62275) · TÜV EN 62275:2015
- Marker plate
- Vertical · 12.9 × 27 mm (0.5 × 1.05 in)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
Datasheet
| Reference | Size W × L (mm) | Length (in) | Bundle Ø (mm) | Bundle Ø (in) |
|---|---|---|---|---|
| AL-M-S-190-8 | 4.8 × 190 | 7.0 | 3.5 – 50.9 | 0.14 – 2.00 |
| AL-M-S-300-12 | 4.8 × 300 | 11.8 | 3.5 – 84.4 | 0.14 – 3.32 |
| AL-M-S-370-14 | 4.8 × 370 | 14.5 | 3.5 – 106.7 | 0.14 – 4.20 |
Bundle Ø = min – max bundle diameter. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

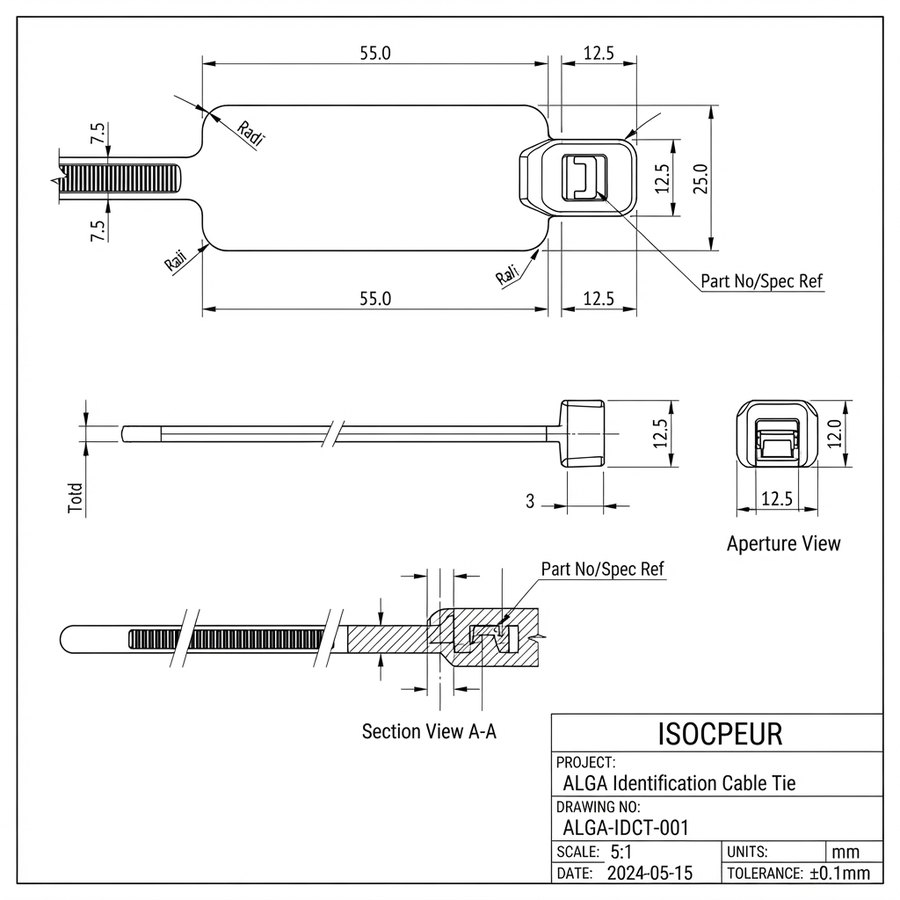

Technical drawing
