Nylon Cable Ties · Mounting & Fixing Ties

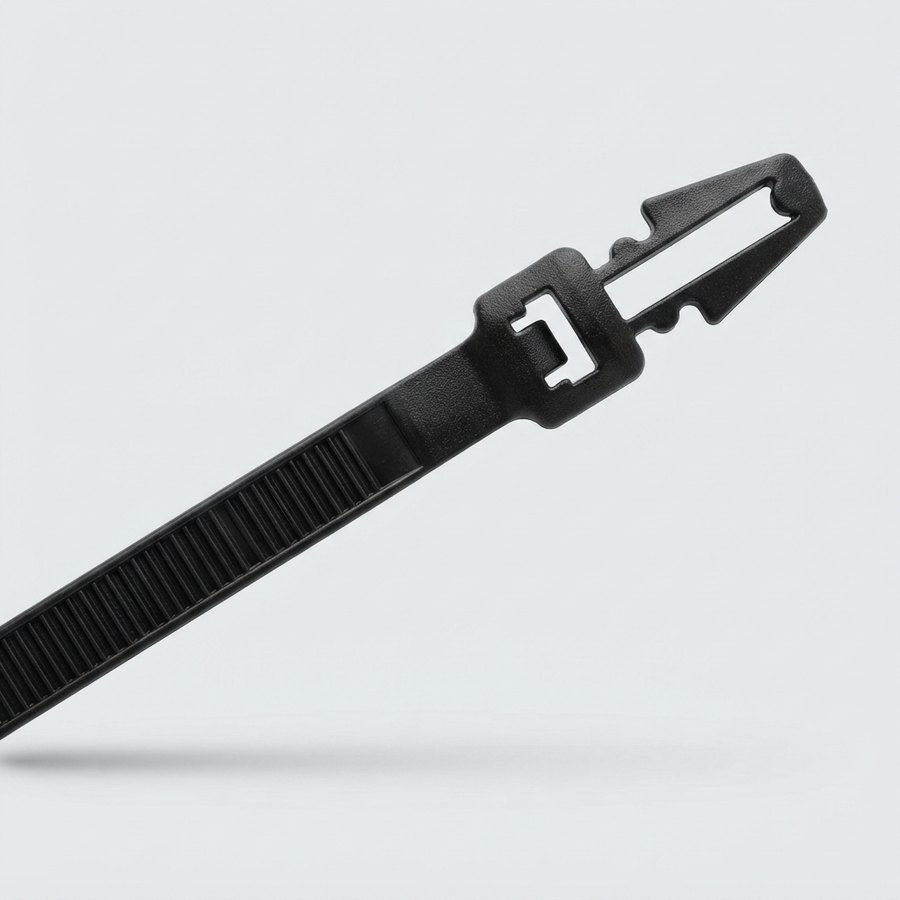

Push Mount Ties
- Tensile strength
- 180 – 230 N
- Width
- 3.6 – 4.8 mm
- Lengths
- 155 – 200 mm
- References
- 2
- Material: Polyamide 6.6 (PA66) — heat-stabilised grade available
- Flammability: UL 94 V-2
- Working temperature: −40 °C to +85 °C (heat-stabilised: +115 °C)
Description
- Material
- Polyamide 6.6 (PA66) — heat-stabilised grade available
- Material brands
- DuPont, Ascend
- Flammability
- UL 94 V-2
- Humidity absorption
- 2.7 – 2.8 % at 23 °C / 50 % RH
- Installation temperature
- −10 °C to +85 °C (heat-stabilised: +115 °C)
- Working temperature
- −40 °C to +85 °C (heat-stabilised: +115 °C)
- Max. short-time temperature
- +110 °C (heat-stabilised: +130 °C)
- UV resistance
- Carbon black additive improves UV resistance (black ties only)
- Chemical resistance
- Good resistance to bases, oils, greases, oil derivatives and chloride solvents. Limited resistance to acids. Not resistant to phenols.
Datasheet
| Reference | W × L (mm) | L (in) | Tensile | Bundle Ø | W | D | H | Min. hole |
|---|---|---|---|---|---|---|---|---|
| AL-PT-150-6 | 3.6 × 155 | 6.0 | 180 N / 40 lb | 3.5 – 37.9 / 0.14 – 1.49 | 5.8 / 0.228 | 3.5 / 0.138 | 2.5 / 0.098 | 4.5 / 0.177 |
| AL-PT-200-8 | 4.8 × 200 | 8.0 | 230 N / 50 lb | 3.5 – 50.8 / 0.14 – 2.00 | 7.0 / 0.275 | 4.3 / 0.169 | 3.9 / 0.153 | 4.9 / 0.193 |
Values shown as mm / in. Bundle Ø = min – max bundle diameter · W = width · D = depth · H = max. panel thickness. UV-resistant version available in black only. Dimensions in mm unless stated otherwise.

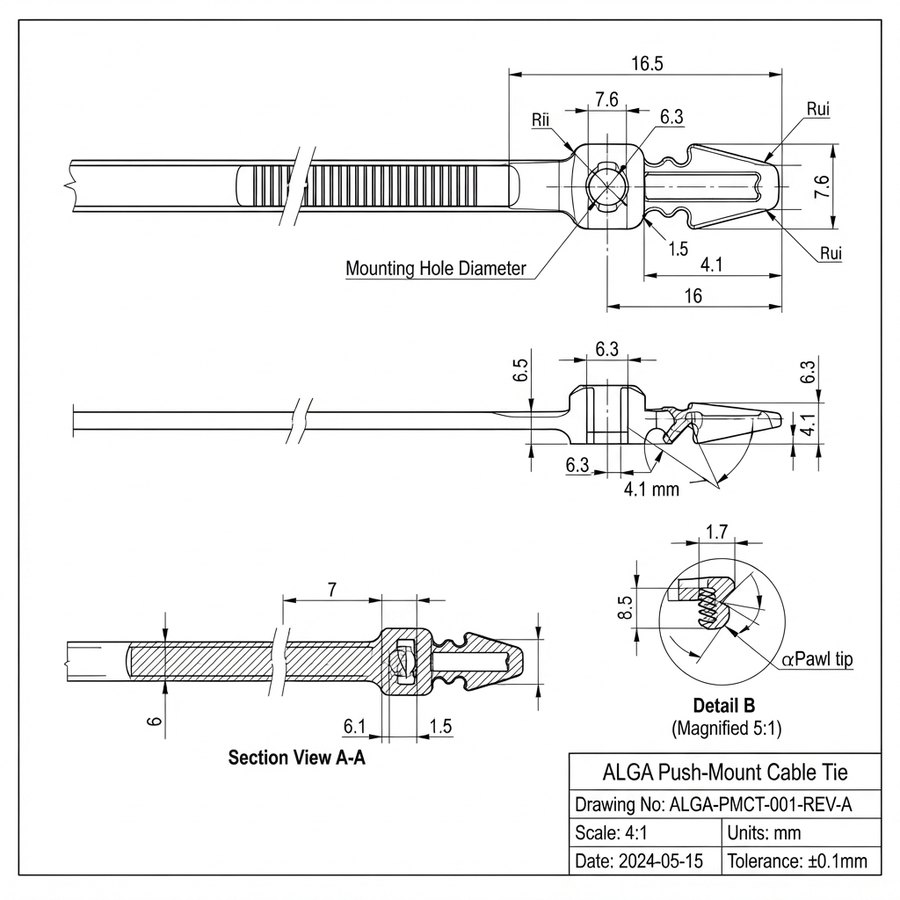

Technical drawing
